RRECT

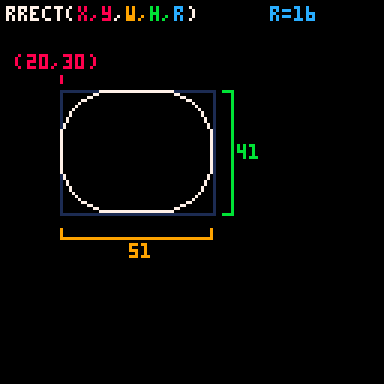

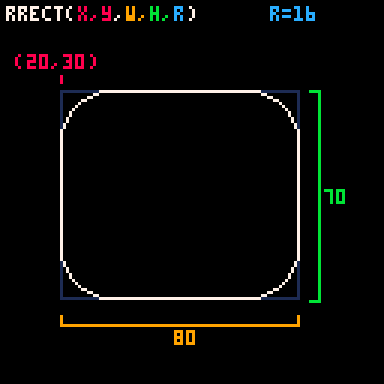

 rrect( x, y, w, h, r, color )

rrect = rounded rectangle


x number of pixels from the left going right for the first corner
y number of pixels from the top going down for the first corner
w number of pixels wide
h number of pixels tall
r radius for curvature of corners
color (optional) a color number

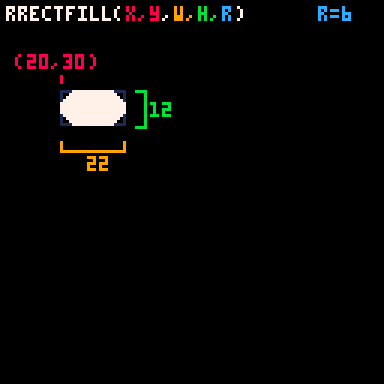

 rrectfill( x, y, w, h, r, color )

rrectfill = rounded rectangle filled

x number of pixels from the left going right for the first corner
y number of pixels from the top going down for the first corner
w number of pixels wide
h number of pixels tall
r radius for curvature of corners
color (optional) a color number

Official Manual - Rounded Rectangles

Images in this Guide by NerdyTeachers is licensed under CC BY-SA 4.0
